Model Architectures

Flemme supports various architectures for classification, segmentation, reconstruction and generation tasks, which are all built from a base encoder-decoder architecture.

Base Architectures

Base Architectures contains a encoder and decoder. The number of input channels of a base model is determined by the encoder, and the number of output channels is determined by the decoder. However, it contains several optional components for context embedding.

There are two main differences between condition embedding \(c\) and time-step embedding \(t\).

\(c\) can be encoded for both encoder and decoder
\(c\) is combined with \(x\) and \(z\) before encoding and decoding, while \(t\) is an optional independent input of encoder and decoder. Actually, \(t\) is the input of each building block in encoder and decoder.

We formulate context embedding as following equations to help you understand the above rules:

\[\begin{split}\begin{equation} \label{equ:forward} \begin{split} &z = \mathcal{E}\left(x + \mathcal{C}_e (c), \mathcal{T}(t)\right),\\ &\mathcal{M}(x, c, t) = \mathcal{D}\left( z + \mathcal{C}_d (c), \mathcal{T}(t )\right), \end{split} \end{equation}\end{split}\]

Context embeddings can also be defined in the configuration files. In Flemme, \(t\) and \(c\) usually denote time-step (for diffusion models) and conditions. If you want to process \(c\) like \(t\), set merge_timestep_and_condition as True.

Condition embedding

Flemme supports several ways for condition embedding, such as one-hot embedding and sinusoidal positional embedding for category and position/time-step. If the condition is a image or point cloud, any encoders introduced in Encoders can be employed.

condition_embedding:
  # how to combine condition embedding and input. Can be one of ['cat', 'add']
  combine_condition: cat
  # merge time-step embedding and context embedding, default: false
  # if you set this as true,
  # make sure context embedding is a embedding vector and can be merged.
  # This means we will process condition embedding in each block.
  merge_timestep_and_condition: false
  # condition embedding for encoder
  encoder:
    ## The condition embedding name should be one of [Identity, OneHot, Time] + supported encoders.
    ## Usually, you need to specity the output channel,
    ## unless you are using a supported encoder,
    ## whose the output channel will be determined automaticlly.
    name: Identity
    out_channel: 1
  # contition embedding for decoder
  decoder:
    ## define a cnn encoder for condition embedding
    name: CNN
    image_size: [320, 256]
    in_channel: 3
    patch_channel: 32
    patch_size: 2
    down_channels: [64, 128, 256]
    middle_channels: [512, 512]
    dense_channels: [128]
    building_block: conv
    normalization: batch

In the above, we simply concat the input and condition for condition embedding of encoder. For decoder, we use an CNN encoder to encode the condition.

Time-step embedding

For time-step, we use sinusoidal positional embedding. You just need to specify the channel of time-step in model configuration.

model:
  name: Base
  # time step embedding
  time_channel: 128
  # condition embedding
  condition_embedding:
    combine_condition: cat
    merge_timestep_and_condition: false
    encoder:
      name: Identity
      out_channel: 1
    ## there is no condition embedding for decoder
  encoder:
    ## define a encoder you want ...

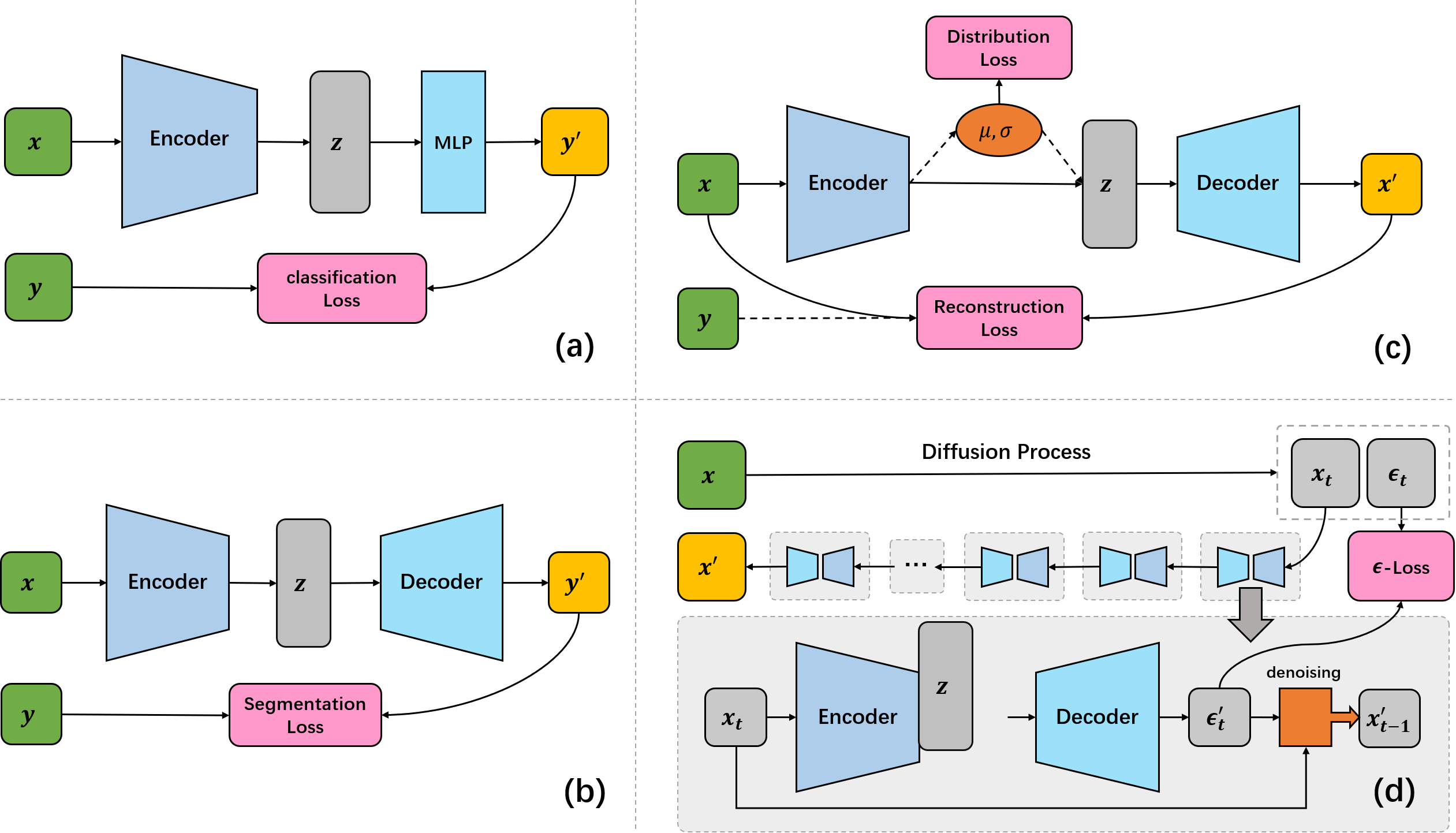

Base architecture are not directly trainable. You will need to define the losses for specific tasks. Three main derived architectures are illustrated in the following figure: (a) Classification Model; (b) Segmentation Model (SeM); (c) Auto-Encoder (AE); (d) Denoising Diffusion Probabilistic Model (DDPM)

Classification Model

For classification, we provide ClM architecture (Classification Model), whose decoder is just a MLP to project the latent embedding to per-category scores. You need to specify classification_losses for ClM. The following block define a classification model:

model:
  # can be AE, VAE, SeM and DDPM
  name: ClM
  classification_losses:
    - name: CE
  # encoder config
  encoder:
    ## define a encoder you want ...

Segmentation Model

For segmentation, we provide SeM architecture (Segmentation Model), which is a simple extension of the base architecture. You need to specify segmentation_losses for SeM. The following block define a segmentation model using a hybrid loss combining Dice and BCE loss. For all supported losses, please refer to Losses.

model:
## model architecture, SeM indicates Segmentation Model
  name: SeM
  # loss function of architecture. For SeM, you need to specify the segmentation loss.
  segmentation_losses:
    - name: Dice
      weight: 1.0
    - name: BCEL
      weight: 1.0
  encoder:
    ## define a encoder you want ...

Auto-Encoder

For reconstruction, we provide AE architecture (AutoEncoder). You need to define reconstruction_losses for AE, which can be a list or a single term. AE can be unsupervised or supervised.

model:
  # can be AE, VAE and DDPM
  name: AE
  ### loss function for reconstruction
  reconstruction_losses:
    name: MSE
  is_supervising: true
  encoder:
    ## define a encoder you want ...

Variational Auto-Encoder

AutoEncoder can be regularized by distribution losses to learn a more continuous latent representation and have a certain capability of generation, which is also known as VAE. A VAE can be defined as following configuration:

model:
  name: VAE
  reconstruction_losses:
    name: MSE
  distribution_loss:
    name: KL
    ## global weight for loss
    weight: 0.01
  encoder:
    ## define a encoder you want ...

Denoising Diffusion Probabilistic Model

In DDPM, base architecture serves as a noise predictor, which are called \(\epsilon\)-model. The loss is named as \(\epsilon\)-loss. We won’t talk much about DDPM that can be refer to this nice blog. To define a DDPM in Flemme, you may need to construct a config file as the following:

model:
  name: DDPM
  ## number of time steps
  num_steps: 1000
  ## noise scheduler
  beta_schedule: consine
  ## define a classifier free guidance
  ## the eps-model should be conditional
  classifier_free_guidance:
    condition_dropout: 0.2
    guidance_weight: 2.0
  ## eps loss
  eps_loss:
    name: MSE
  ## define eps-model, which is the noise predictor
  eps_model:
    ### number of channels for time-step embedding
    ### time-step embedding will be processed in each building block
    time_channel: 128
    ### conditional DDPM
    ### this model take the class label as condition
    condition_embedding:
      combine_condition: add
      merge_timestep_and_condition: true
      encoder:
        name: OneHot
        type: categories
        out_channel: 128
        num_classes: 10
    ### define the encoder of eps-model
    encoder:
      ### we always recommend U-shaped networks for DDPM
      name: UNet
      #### other parameters related to the encoder

Denoising Diffusion Implicit Model

We support to use DDIM to accelerate sampling process of DDPM. You can directly change DDPM to DDIM in test configuration file without re-training the model. You can also directly train a DDIM model, or train a DDIM model from a DDPM checkpoint.

model:
  name: DDIM
  # number of sampling steps, default is 100
  num_sample_steps: 100
  # other parameters stay the same as DDPM configuration

Althrough fully sampled images from DDPM model might have better quality than the images generated by DDIM. We still recommand you to use DDIM instead of DDPM if you want to visualize the generated results during training process. Because a full sampling for DDPM might be very slow. If you set a small number of sample steps for sampler, the generated results could be very unclear (see generated results on MNIST datasets).

Latent Diffusion Model

Latent diffusion models (LDM) perform diffusion and reverse diffusion process on latent space. Therefore, we need a auto-encoder to construct latent space. Similar to DDPM and DDIM, we have LDPM (Latent Diffusion Probabilistic Model) and LDIM (Latent Diffusion Implicit Model).

Latent diffusion contains two sub models: an \(\epsilon\)-model and an auto-encoder (can be AE or VAE). The following configuration files define a point cloud LDM. Latent diffusion model is still in test. Feel free to contact me if you want to know more.

model:
  name: LDPM
  n_steps: 1000
  beta_schedule: consine
  ## ae model
  ## you can choose to freeze the auto-encoder, or update its' weights
  freezed_ae: true
  ## path of pre-trained ae
  ae_path: path/to/auto-encoder.pth
  ae_model:
    name: VAE
    encoder:
      name: PointNet
      in_channel: 3
      point_num: 1024
      building_block: single
      conv_channels: [64, 128, 256, 512]
      dense_channels: [1024]
      decode_dense_channels: [1024, 512, 256]
      activation: lrelu
      pointwise: False
    reconstruction_losses:
      - name: EMD
    distribution_loss:
      name: KL
      weight: 0.1
  ## eps model
  eps_model:
    # encoder config
    time_channel: 128
    encoder:
      name: PointWise
      in_channel: 1024
      dense_channels: [1024, 2048, 4096]
      building_block: res_dense
      activation: silu
      normalization: layer
      dropout: 0.1
      data_form: VEC

Supervised Diffusion Model

Supervised diffusion model can be consider to use generation model for reconstruction (or segmentation). For image restoration, you may input a noisy image \(x\), and want to recover the clear image \(y\). You can easily to train a AE for this task, by use \(x\) as input and \(y\) as target.

If we want to use a diffusion model to do such things, we can use \(x\) as condition to generate \(y\). We wrap these process as SDPM (Supervised Diffusion Probabilistic Model) and SDIM (Supervised Diffusion Implicit Model), so you can use them like an AE or SeM. SDIM uses a accelerated and determined sampling strategy and can be directly test on the trained SDPM.

Because SDM are based on conditional diffusion models, you need to specify the condition embedding. The configuration file of a SDPM looks like the following:

model:
  # can be AE, VAE and DDPM
  name: SDIM
  num_steps: 1000
  num_ensemble: 1
  beta_schedule: consine
  eps_loss:
    name: MSE
  eps_model:
    time_channel: 128
    encoder:
      name: SwinU
      image_size: [320, 320]
      in_channel: 1
      out_channel: 1
      patch_channel: 32
      patch_size: 2
      down_channels: [64, 128, 256]
      middle_channels: [512, 512]
      building_block: double_swin
      abs_pos_embedding: false
      window_size: 10
      num_blocks: 1
    condition_embedding:
      combine_condition: cat
      merge_timestep_and_context: false
      encoder:
        name: Identity
        out_channel: 1

Hierarchical Architectures

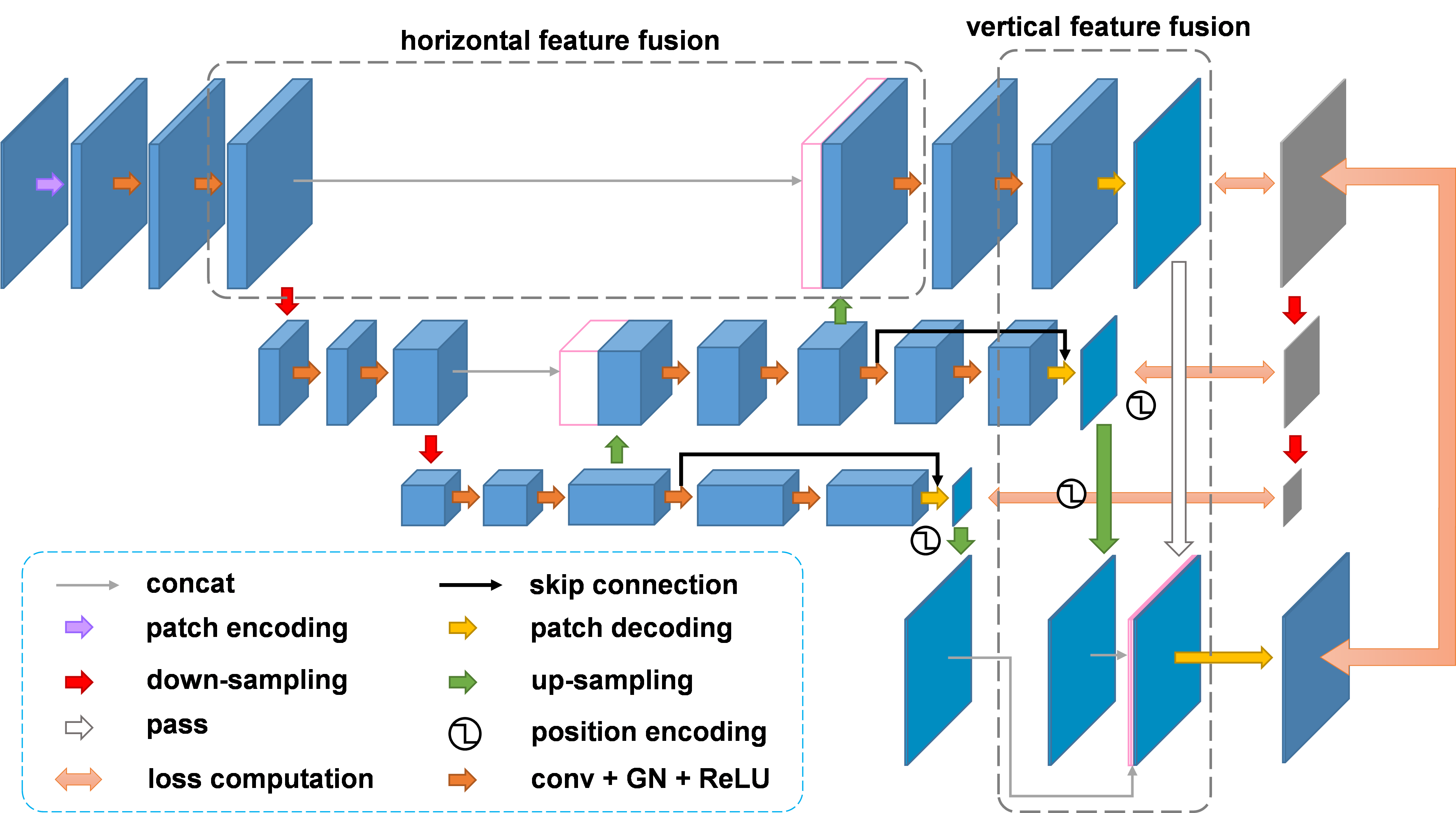

We extend base architecture and propose a generic hierarchical architecture combining a pyramid loss for vertical feature fusion.

Details of our hierarchical architecture can refer to our paper. Theoretically, we can build hierarchical versions for all supported architectures. However, we don’t recommend to use this design for diffusion model based methods. Because we predict noise instead of reconstructing the image in the reverse diffusion process. Noise usually doesn’t contain clear global structures, and scaling the noise map may cause severe loss of details. Therefore, we construct hierarchical segmentation model and auto-encoder denoted as HSeM and HAE for image segmentation and reconstruction. Note that HSeM and HAE are not supported for point cloud segmentation and reconstruction.

To summarize, we have the following architectures:

Archi	Applicable tasks
ClM	Classification
SeM, HSeM	Segmentation
AE, HAE	Reconstruction
VAE	Reconstruction, Generation
DDPM, DDIM	Generation
SDPM, SDIM	Reconstruction, Segmentation, Generation
LDPM, LDIM	Generation
